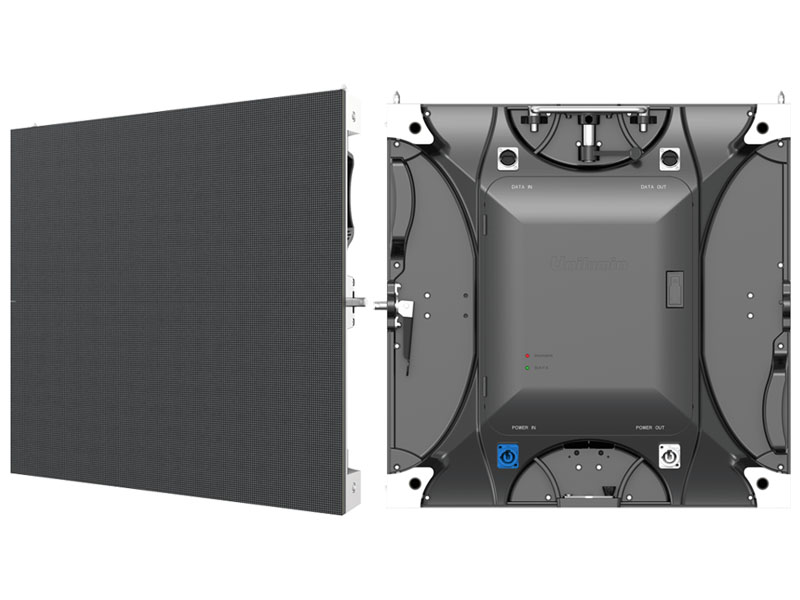

Utile S

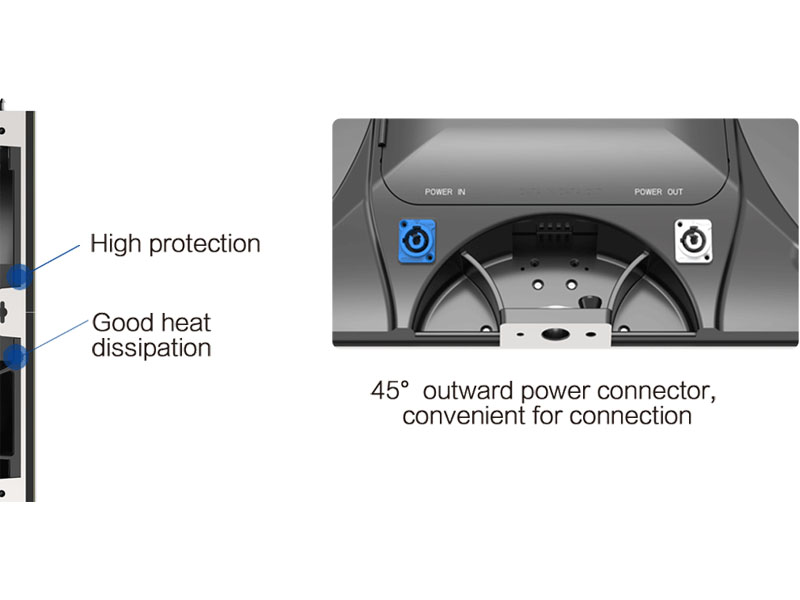

The Utile and Utile S panels are versatile and highly durable. This is the ideal panel for rental situations, as it has extreme heat dissipation, edge protection, and no bezel. It can also be curvable and set at 90 degree angles. This panel is available in multiple pixel pitches from 4.8 mm down to 2.6mm and is offered in standard and high refresh rates.

Did you know we offer financing options? Click here for more information!

Specifications
Pixel Pitch2.6mm / 3.9mm
Recommended Viewing DistanceGreater than 8.5 / 12 feet
LED Type3 in 1 Unilumin SMD
Refresh Rate3840 Hz
Receive CardNovastar A8s
Pixels Per Panel192×192 / 128x128
Pixel Density147,456 / 65,536 pixels/m²
Weight18.74 lbs/panel
Module SizeW250mm×H250mm
Cabinet SizeW500mm×H500mm×D84mm
Aspect Ratio1:1
Area0.25 m²
MaterialDie Cast Aluminum
EnvironmentIndoor
Ingress ProtectionIP30
Operating Temperature/Humidity-10℃~+45℃/10~80%RH
Storage Temperature/Humidity-20℃~+55℃/10~85%RH
MaintenanceRear
Gap Between ModulesSeamless
Bezel WidthNone
Horizontal Viewing Angle160 Degrees
Vertical Viewing Angle160 Degrees
Color Temperature2000-9300K Adjustable
Colors4.4 Trillion
Contrast Ratio3000:1
Input Power <Max>135W/ panel
Input Power <Typical>45W /panel
Video Frame Rate50/60 Hz
Input Voltage120/240V
Input Power Frequency50~60 Hz
Input SignalDVI/HDMI/VGA/SDI/DP/AV/S-Video, etc
CalibrationSupport brightness and chroma
LED Life Time≥100,000 Hours
Standard Mounting ConfigurationFixed, Floor-mounted, Hanged
Data InterconnectionCAT5 Cable; multi-mode fiber; single mode fiber
