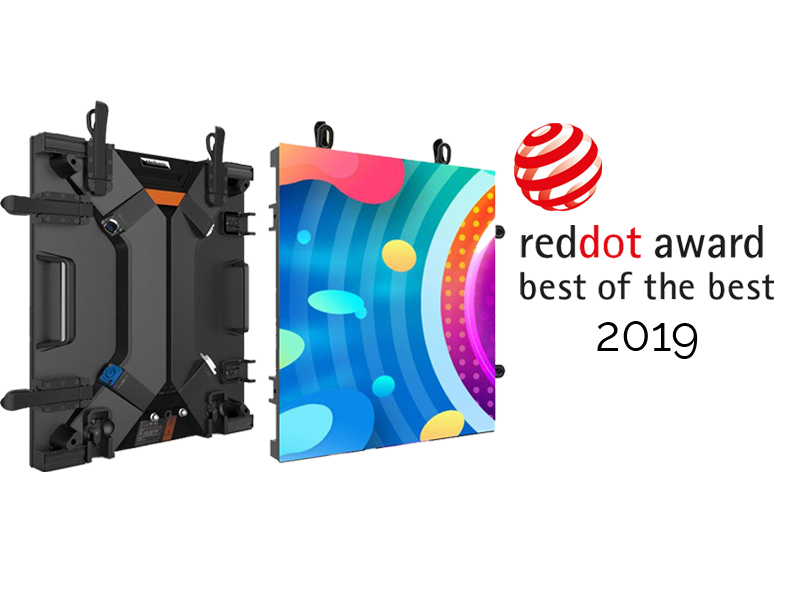

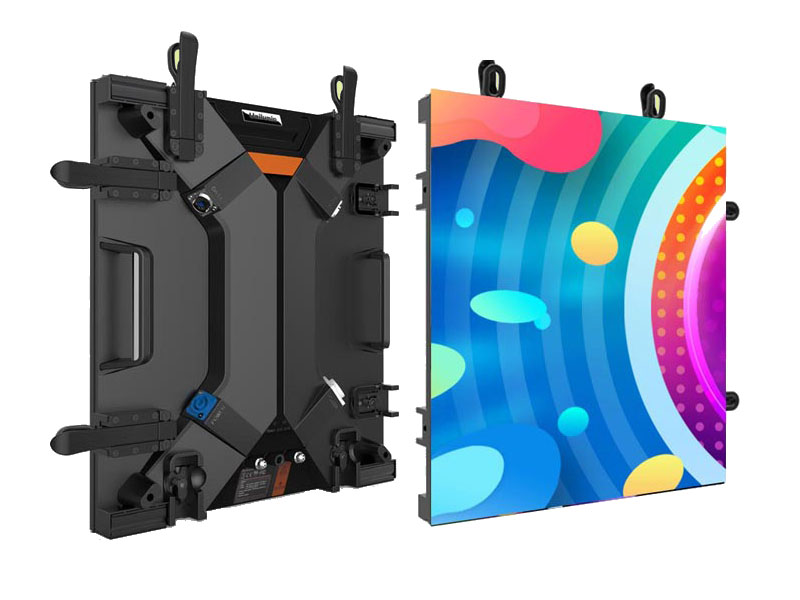

UNANO

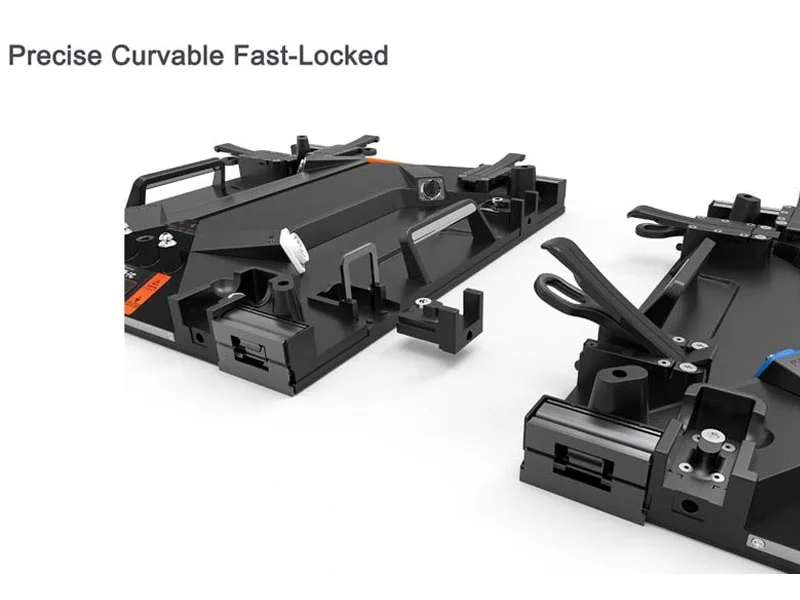

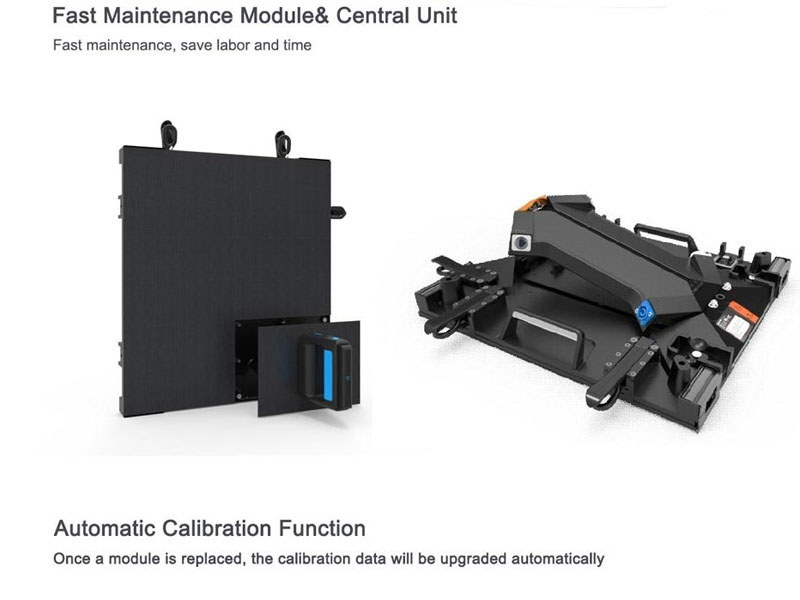

The UNANO panel is ultra thin and portable. It has extremely fast front maintenance abilities along with center unit replacement. The smart edge protection helps keep LEDs safe while saving time and energy during setup.
UNANO is the finest of pixel pitches we offer! With 24 bit, High Gray Scale and HDR technology this panel packs a visual unlike anything you've ever seen. 2K, 4K, and 8K ready with ultra fast refresh rates and front serviceable maintenance, makes this panel next generation ready.
Did you know we offer financing options? Click here for more information!
| Model | Unano 1.3 | Unano 1.5 | Unano 1.8 |
|---|---|---|---|
| Pixel Pitch | 1.3mm | 1.5mm | 1.8mm |
| Environment | Indoor | ||
| Pixels Per Panel | 320 x 360 | 284 x 318 | 240 x 270 |
| Pixel Density /m² | 522,257 | 409,600 | 293,769 |
| LED Type | 3 in 1 Black SMD | 4 in 1 Black SMD | 3 in 1 Black SMD |
| LED Refresh Rate | 3840 Hz | ||
| Weight/Panel | 15.43lbs (7kg) | ||
| Module Size | W221.4mm x H166.05mm | ||
| Cabinet Size | W442.8mm x H498.15mm x D62mm | ||
| Aspect Ratio | 8:9 | ||
Want the full spec sheet?
Click the button below to download the full technical specifications for the UNANO.
